Auxiliary Electrical Accessory Options HONDA CRF 250L/300L 2017-2025
250L/300L USB A
PLEASE DOUBLE CHECK YOUR SELECTION BEFORE CHECKING OUT!
HONDA was nice enough to include a handy 10 AMP* switched accessory lead connector that is hidden inside a small black vinyl protective boot located behind the headlamp on the right side on 2017-2025 HONDA CRF 250L/300L models. However, HONDA has yet to release an accessory lead to plug into it! So we picked up the ball and sourced the correct original HONDA waterproof connectors and built it.

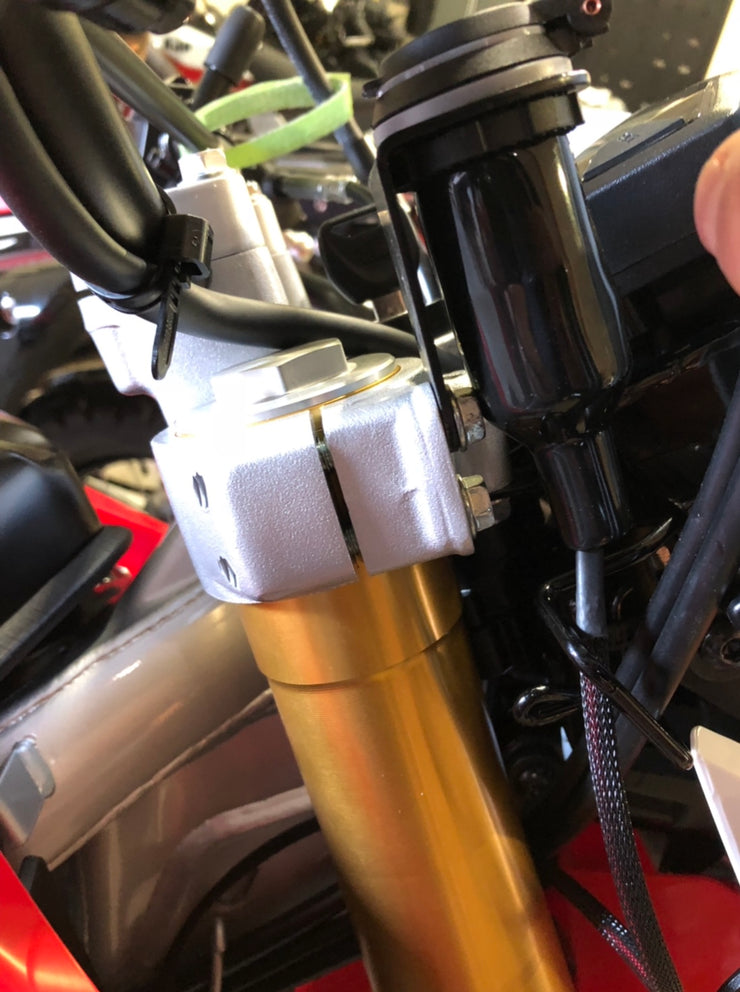

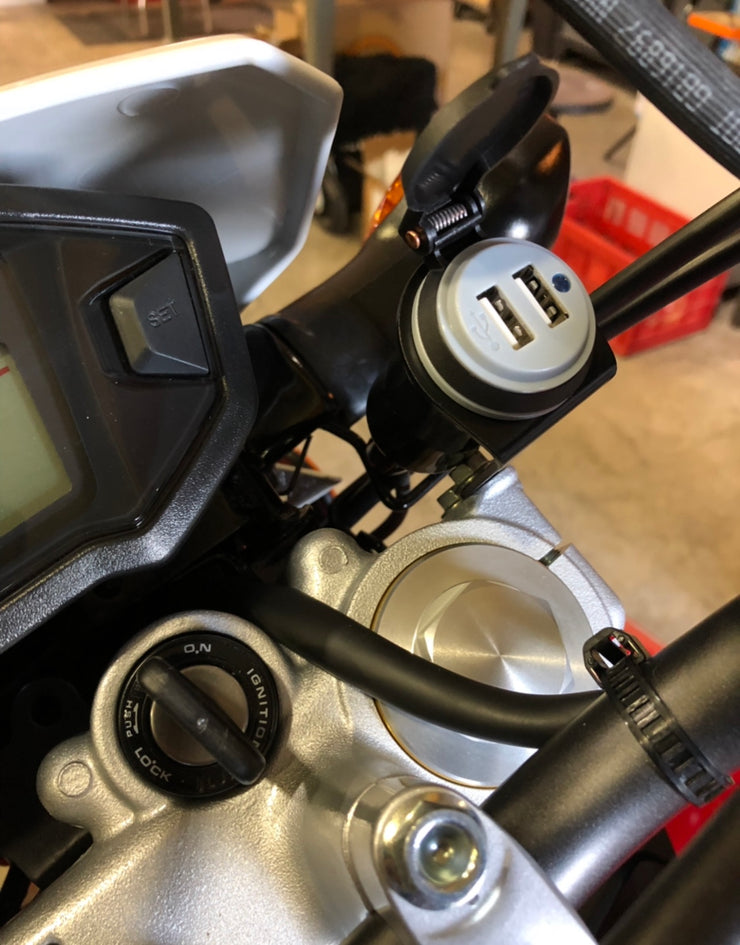

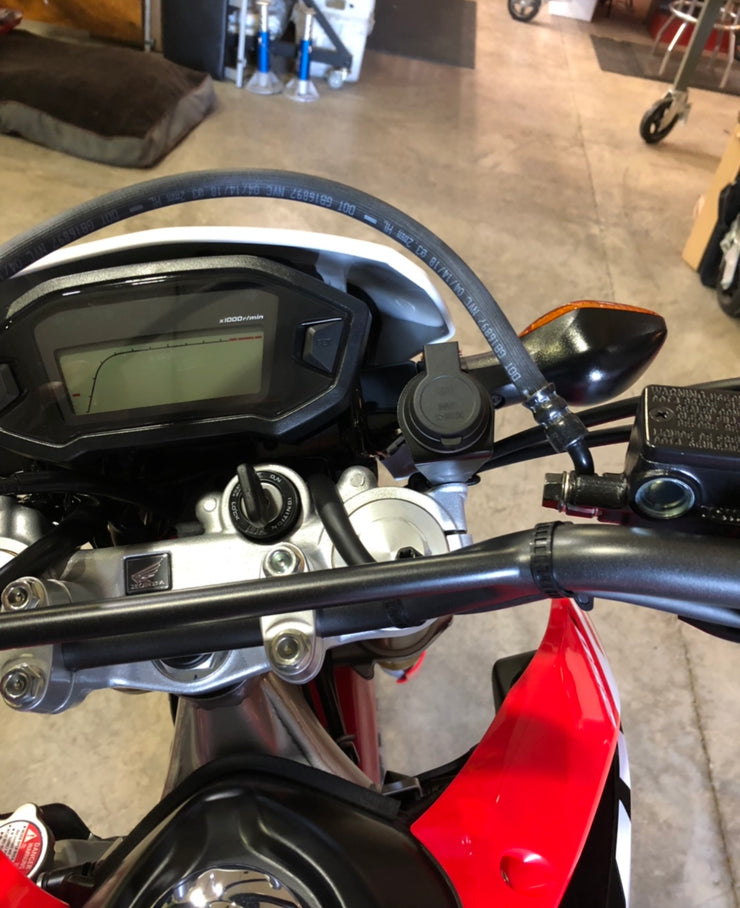

DUAL USB Version: This is a high-quality dual USB charger with an OE appearance featuring a water-resistant spring-loaded hinged cover. The dual USB charger outputs 2.1 amps for fast phone charging and features a blue led indicator to let you know it's on. Easily installed in just a couple of minutes, all you need is a 10 mm wrench or socket to secure the mount bracket to the upper right triple clamp bolt. And plug the other end into the auxiliary power connector mentioned above. Step by step instructions with photos are included.

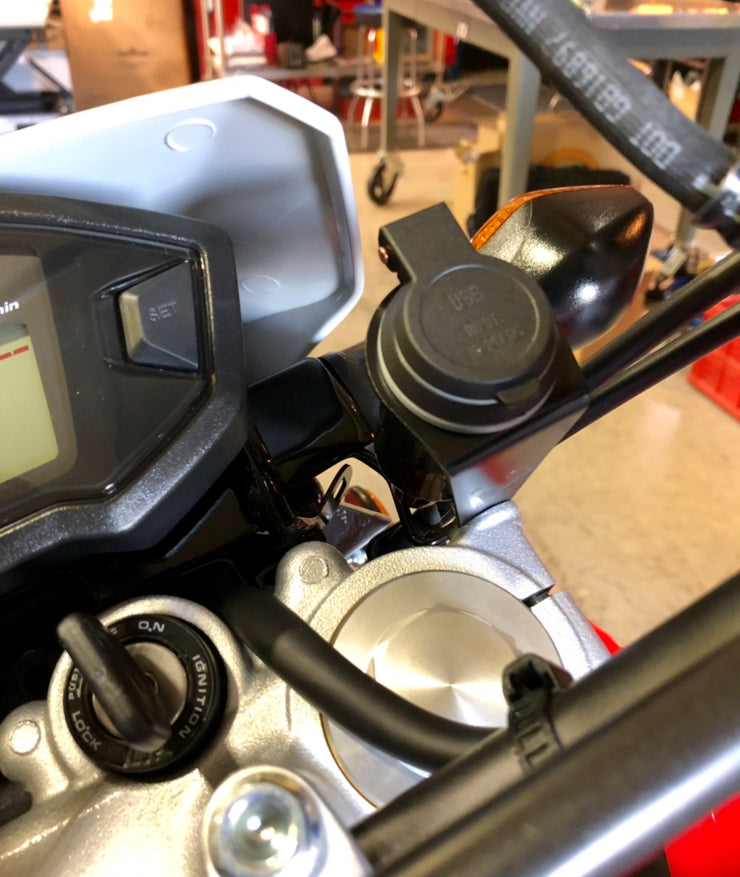

12 Volt Socket Version: (cigarette lighter style) This is a high-quality 12-volt socket we developed to offer an OEM appearance, with water-resistant hinged spring-loaded cover. Easily installed in just a couple of minutes, all you need is a 10 mm wrench or socket to secure the mount bracket to the upper right triple clamp bolt. And plug the other end into the auxiliary power connector mentioned above. Step by step instructions with photos are included. We offer a nice rugged aluminum housing USB adapter here in the electrical section if needed.
* This is a 10 AMP Switched circuit (fuse #5 on the Rally), which means it is turned off and on by the bikes ignition switch.
Here's a short list of the average current draw for popular accessories:
Heated Grips 3-5 AMPS
USB Phone Charger 1-2 AMPS
Heated Gloves 3 AMPS
Heated Jacket 8 AMPS
Heated Pants 6 AMPS
WARNING: Most High output horns will draw too much amperage for this circuit. If you are planning to use a 12-volt compact air compressor, be sure to check it to make sure it does not draw more than 10 amps! Usually better to get a compressor that connects to your battery tender SAE connector and ensure it's got the proper capacity.
Here's the connector as viewed from the right side of the bike, just behind the headlight looking upwards from the side reflector area.
